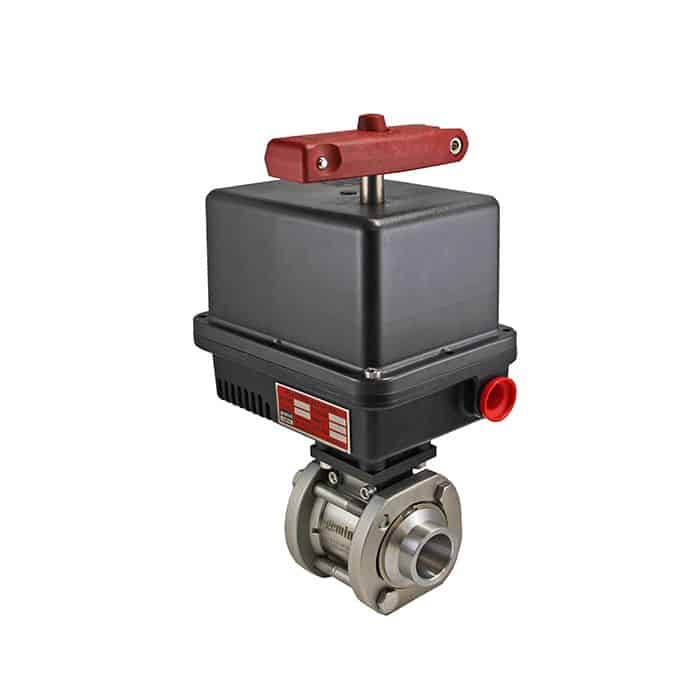

1-1/2" Tube Socket Weld Stainless Steel 12 DC Electric Actuated 3-piece Ball Valve With Limit Switch

Model Number

1-1/2TSW F6-1.2-89-6-RTV-6-630-12DC-LS

SKU
2266TS663012DL
$1,077.55
Add to Cart
Request a Sample
Request a Sample
Product: 1-1/2" Tube Socket Weld Stainless Steel 12 DC Electric Actuated 3-piece Ball Valve With Limit Switch
Model Number: 1-1/2TSW F6-1.2-89-6-RTV-6-630-12DC-LS
11. Tell us about yourself
22. Request a sample
Configured Product Information
Specifications
Dimensions
Spare Parts
Configured Product Information

Serviceable Series; three piece standard port 316 stainless steel ball valve. Seats and Stem Seal are glass reinforced P.T.F.E. (Teflon®), body seals Viton®. Pipe connections are tube socket weld. Temperature Range -20°F to 400°F (-28.8°C to 204.4°C). Valve Body Pressure Rating 1,000 psi C.W.P. (Cold Working Pressure), Maximum Pressure Differential 400 psi – also see Differential Pressure Temperature Chart), Saturated Steam to 150 PSI and a Vacuum rating of 20 Microns. Self-compensating stem seal design. Also see Product Specifications which can be found at www.geminivalve.com Products are marketed per Gemini Valve Standard Terms & Conditions. All Gemini Valve Products MADE IN USA.

Valve is operated by 12VDC Electric Actuator with a cycle (index) time of six seconds. Actuator is power on / power off utilizing cam switches to start and stop motor at close / open positions. Actuator controlled by user provided DPDT (Double Pole, Double Throw) switch or device. Temperature Rating 40°F to 150°F (4.4°C to 65.5°C). Duty Cycle 100%, Amps full load 1.0. Electrical connection: (2) Conduit ½” ports. Capacitor run motor with auto reset thermal overload protection. Permanently lubricated – maintenance free gear train. DuPont® FR50 cover with Teflon® coated cast aluminum base. Fold out manual override handle. NEMA 4X Enclosure.

Specifications
  • Valve TypeTwo-Way, On / Off
  • Valve StyleThree-Piece Body - Standard Port
  • Valve Connection Size1-1/2" Tube Socket Weld
  • Valve Port Size1.20
  • Valve Body Material316 Stainless Steel
  • Valve Ball & Stem Material316 Stainless Steel
  • Valve Seal MaterialP.T.F.E. (Glass Filled Reinforced Teflon®) / Viton®
  • Valve Temperature Range-20°F to 400°F (-28.8°C to 204.4°C)
  • Valve Pressure Rating1,000 PSI C.W.P. (Cold Working Pressure), Saturated Steam 150 PSI
  • Valve Vacuum Rating20 Micron
  • Valve OperatorActuator
  • Valve Operator Type12DC - Optional Extra Set of Limit Switches Included
  • Actuator EnclosureTeflon® Coated Cast Aluminum Base, DuPont® FR50 Cover
  • Actuator Enclosure RatingNEMA 4X
  • Actuator Temperature Range40°F to 150°F (4.4°C to 65.5°C)
  • Actuator Duty Cycle75%
  • Actuator AMPS1.0
  • Actuator Cycle Time6 seconds
  • Actuator OverrideManual - Fold Out Lever Handle
  • Actuator Supply Connection(2) 1/2" Conduit
  • Limit SwitchL
