Pneumatic Actuated Ball Valves

Existing & Custom Designs Available
All of our pneumatic actuated ball valves are designed, manufactured and sold factory-direct from our New Hampshire headquarters
Jump To:
  • What is a Pneumatic Actuated Ball Valve?
  • Pneumatic Actuated Ball Valves Series
  • Our Pneumatic Actuated Ball Valves
  • Why Choose Gemini Valve?
  • When a Pneumatic Actuated Ball Valves in Necessary
  • Custom Pneumatic Actuated Ball Valves
  • Future of Our Pneumatic Actuated Ball Valves

Items 1-12 of 4183

Page
per page
Set Descending Direction
  • 84M16N512AD View Product
    View Product
  • 87M16N512AD View Product
    View Product
  • 85M16N512AD View Product
    View Product
  • 8616N512AD View Product
    View Product
  • 8816N512AD View Product
    View Product
  • 8116N522AD View Product
    View Product
  • 8216N522AD View Product
    View Product
  • 8316N522AD View Product
    View Product
  • 84M16N512ADP55 View Product
    View Product
  • 87M16N512ADP55 View Product
    View Product
  • 85M16N512ADP55 View Product
    View Product
  • 8616N512ADP55 View Product
    View Product

Items 1-12 of 4183

Page
per page
Set Descending Direction
Need Help? Speak to specialist to find the ball valve for you Contact Us
What is a Pneumatic Actuated Ball Valve?

A pneumatic actuated ball valve uses compressed air to automate the control of media. Pneumatic actuated ball valves don’t rely on a motor, but they do require electricity when paired with an integral pilot or solenoid valve.

Here’s a breakdown of the components:

Pneumatic: Refers to the use of pressurized air or gas to create energy.
Actuator: The component that is used to automate control of the ball valve.
Ball Valve: A quarter-turn on/off valve that controls flow of media via a pivoting ball

Configure & Order Your Performance Automation Ball Valves Learn More
<
Our Pneumatic Actuated Ball Valves

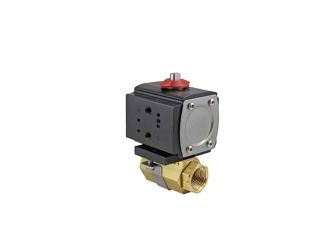

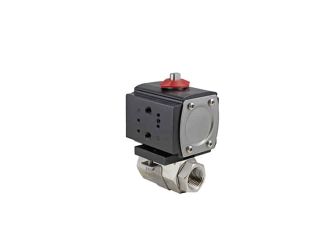

Double-Acting Pneumatic Actuated Ball Valve
The actuator uses compressed air to both open and close the ball valve. This is the most popular option and the best choice for the majority of applications. In the event of a power loss, the actuator will return the ball valve to the closed position.
Used For:
Low to high cycle applications where compressed air is accessible, and that require a power loss failsafe and compact design.
Spring-Return Pneumatic Actuated Ball Valves
Compressed air is used to open the ball valve. When air pressure is a removed, a failsafe spring forces the ball valve closed. In the event of a power or compressed air failure, the valve will return to the closed position.
Used For:
Moderate cycle applications with access to compressed air, and that require a failsafe in event of compressed air or power loss.
Double-Acting Pneumatic Actuated Ball Valve (with Failsafe)
A Gemini Valve industry first, these ball valves combine the service life of our double-acting models with the failsafe feature of spring-return models. The actuator operates as a double-acting actuator, but includes spring return modules to ensure the valve fails closed in the event of power or compressed air loss.
Used For:
High cycle applications where compressed air is accessible, and a failsafe is required in event of compressed air or power loss.
Solenoid Valve
A solenoid valve is used to pilot air to the pneumatic actuator to automate the flow of media. All pneumatic actuated ball valves require some form of air control valve to operate. Our GP Solenoid Valves flush mount to the actuator via a NAMUR-compatible interface and act as an integral component of the assembly. This component is optional and may not be required if a solenoid bank or other air control device is utilized.
Used For:
All pneumatic actuated ball valves require solenoid valves to automate the delivery of compressed air to the actuator.
When a Pneumatic Actuated Ball Valve is Necessary

Pneumatic actuated ball valves are found in factories and manufacturing facilities. They are also commonly used on OEM equipment where compressed air is accessible, such as liquid filling equipment or automotive fluid fill systems.

You’ll also find these ball valves in use in the following industries:

  • Oil & Gas
  • Food & Beverage
  • Automotive
  • Power Processing
  • Pharmaceutical
  • Chemical Admixtures & Treatment
Features of Our Pneumatic Actuated Ball Valves
    Made in the USA
    100% Tested In House
    Application-Specific Customizations Available
    Competitively Priced
    No reseller Markups
    Factory-Direct Support
    Fast ½ - 1 second Cycle Times
    Industry-First Double Acting Failsafe Option
    Ultra-Compact Design
    Long-Lasting, Maintenance-Free
    NSF® & ANSI Certified
Available Pneumatic Actuated Ball Valve Series

Performance Automation Series

Designed for high cycling, our Performance Automation Series of pneumatic actuated ball valves offers exceptional service life in a compact, low-cost package.

These ball valves feature a superior valve-to-actuator mounting system and space-saving design. Additional features include:

  • Double-Acting, Double-Acting with Failsafe & Spring-Return Models
  • Proven Rack & Pinion Design
  • 1/2 to 1 Second Cycle Time
  • Aluminum Body with Hard Anodized Surfaces
  • Temperature: -30° to 350°F (Model Dependent)
  • Air Supply Required: 60 to 125 psi
  • Air Supply Connections: (2) 1/8″ NPT or NAMUR Interface
  • Optional Integral Solenoid Valves & Limit Switches
Compare All Series of Our Pneumatic Actuated Ball Valves
SalesPerfomance AutomationGeneral IndustrialServiceableCompression End
HighlightsDesigned exclusively for enduring automation, ideal for high-cycle OEM and End User applications.Designed for compatibility with the widest variety of industrial and OEM applications.Designed for reparability. Wear components can be quickly and easily replaced.An alternative to high-pressure instrumentation models for applications requiring a pressure rating less than 1,000 psi.
Max PSI C.W.P. (0° to 150° F)1,0007201,0001,000
Temperature RangeViton®: -20° to 400°F EPDM: -50° to 250°F-20° to 400°F-20° to 400°F-20° to 400°F
Example ApplicationsLiquid Filling / Batching / Dispensing Commercial Cooking Equipment Automotive Fluid Fill Concrete Admix Process ControlLiquid / Pressure Testing Equipment Heating / Cooling Media Control Boiler Blow Down Autoclaves / SterilizersPaint Mixing / Batching Pulp & Paper Process Control Applications with Suspended ParticulateIndustrial Emissions Control Instrumentation Gaseous or Liquid Service
View SeriesView SeriesView SeriesView Series
Why Choose Gemini Valve?

Everything Under One Roof

No outsourcing. No resellers. Your pneumatic actuated ball valves are always designed, manufactured, tested, supplied and supported directly from our New Hampshire-based facility.

With everything under the same roof, our customers benefit from quick responses, factory-direct support and custom product design capabilities.

  • 50+ Years of Engineering Expertise
  • USA-Based Facility in Rural New Hampshire
  • Family Owned & Operated
  • 100% In-House Design, Manufacturing, Testing, Distribution & Support
Looking for a Custom Pneumatic Actuated Ball Valve?

In the case that your application requires a new, custom solution, our engineering team is ready to get to work.

We design, manufacture, test and distribute all of our ball valves from our fully equipped, 60,000 sq.ft. facility. You’ll have direct access to our engineers, who will work tirelessly to develop an application-specific solution for your business.

Ask Us About Our Custom Ball Valve Design Services

Get a Quote for Your Project

For the most accurate pricing information, we’re happy to provide a quote for your specific application. In most cases, we will respond within 1 business hour!
