3-Way Ball Valves
Available in Standard & Custom Designs
Designed, manufactured, distributed and supported directly from our headquarters in New Hampshire.
Jump To:
- What is a 3-Way Ball Valve?
- T-Port & L-Port 3-Way Ball Valves
- Manual & Automated 3-Way Ball Valves
- Applications for 3-Way Ball Valves
- Features of Our 3-Way Ball Valves
- Available 3-Way Ball Valves
- Why Choose Gemini Valve?
- Custom 3-Way Ball Valves
- Valve Size: 1/4"Connection Type: NPT femaleBody Material: 316 Stainless SteelOperator Type: Double-Acting 60-125 PSILimit Switch: NoSolenoid Valve: NoPart Number37090404N66RV512CD
- Valve Size: 1/4"Connection Type: NPT femaleBody Material: 316 Stainless SteelOperator Type: Double-Acting 60-125 PSILimit Switch: NoSolenoid Valve: 12VDC - Din X Conduit ConnectorPart Number37090404N66RV512CDP64
- Valve Size: 1/4"Connection Type: NPT femaleBody Material: 316 Stainless SteelOperator Type: Double-Acting 60-125 PSILimit Switch: LS-1Solenoid Valve: 12VDC - Din X Conduit ConnectorPart Number37090404N66RV512CDP64L
- Valve Size: 1/4"Connection Type: NPT femaleBody Material: 316 Stainless SteelOperator Type: Double-Acting 60-125 PSILimit Switch: NoSolenoid Valve: 12VDC - Din X Strain ConnectorPart Number37090404N66RV512CDP66
- Valve Size: 1/4"Connection Type: NPT femaleBody Material: 316 Stainless SteelOperator Type: Double-Acting 60-125 PSILimit Switch: LS-1Solenoid Valve: 12VDC - Din X Strain ConnectorPart Number37090404N66RV512CDP66L
- Valve Size: 1/4"Connection Type: NPT femaleBody Material: 316 Stainless SteelOperator Type: Double-Acting 60-125 PSILimit Switch: NoSolenoid Valve: 24VDC - Din X Conduit ConnectorPart Number37090404N66RV512CDP70
- Valve Size: 1/4"Connection Type: NPT femaleBody Material: 316 Stainless SteelOperator Type: Double-Acting 60-125 PSILimit Switch: LS-1Solenoid Valve: 24VDC - Din X Conduit ConnectorPart Number37090404N66RV512CDP70L
- Valve Size: 1/4"Connection Type: NPT femaleBody Material: 316 Stainless SteelOperator Type: Double-Acting 60-125 PSILimit Switch: NoSolenoid Valve: 24VDC - Din X Strain ConnectorPart Number37090404N66RV512CDP58
- Valve Size: 1/4"Connection Type: NPT femaleBody Material: 316 Stainless SteelOperator Type: Double-Acting 60-125 PSILimit Switch: LS-1Solenoid Valve: 24VDC - Din X Strain ConnectorPart Number37090404N66RV512CDP58L
- Valve Size: 1/4"Connection Type: NPT femaleBody Material: 316 Stainless SteelOperator Type: Double-Acting 60-125 PSILimit Switch: NoSolenoid Valve: 24VAC - Din X Conduit ConnectorPart Number37090404N66RV512CDP67
- Valve Size: 1/4"Connection Type: NPT femaleBody Material: 316 Stainless SteelOperator Type: Double-Acting 60-125 PSILimit Switch: LS-1Solenoid Valve: 24VAC - Din X Conduit ConnectorPart Number37090404N66RV512CDP67L
- Valve Size: 1/4"Connection Type: NPT femaleBody Material: 316 Stainless SteelOperator Type: Double-Acting 60-125 PSILimit Switch: NoSolenoid Valve: 24VAC - Din X Strain ConnectorPart Number37090404N66RV512CDP59
What is a 3-Way Ball Valve?
Three-way ball valves are the most popular and economical type of multi-port valves. This style of valve is commonly used in applications with more than one source of media or to divert media in two different directions.
Depending on the flow direction, the three ports are assigned as either one outlet and two inlets, or one inlet and two outlets.
A 3-way ball valve provides the ability to:
- Mix two different types of media (Selector Valve)
- Divert the flow of media (Diverter Valve)
T-Port & L-Port 3-Way Ball Valves
Three-way ball valves are most commonly configured with L-Port or T-Port flow patterns. The ball valve is drilled into a specific design, creating either an L- or T-shaped port.
Each design serves a specific function. An L-port valve draws media from multiple sources or diverts media between two different destinations. A T-port valve serves a very similar function, the main difference being that in the normal position the media will flow straight through from one side of the T to the other.
The T-port can also be configured to have media flow directly through the valve in position #1 and all ports open in position #2. An L-port valve cannot be configured to have all valve ports open simultaneously.

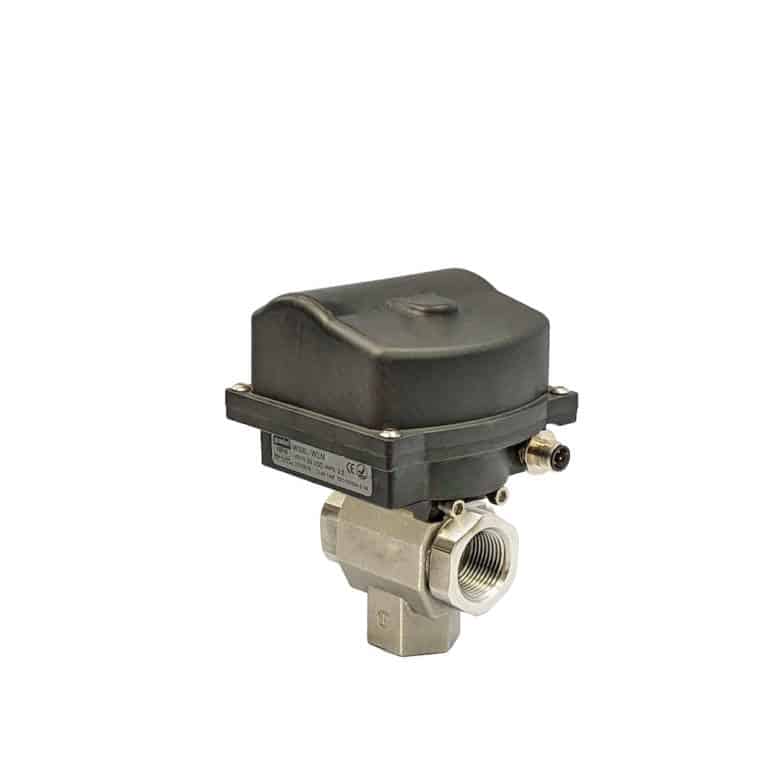

Manual & Automated 3-Way Ball Valves
| Manual | Electric Actuated | Pneumatic Actuated |
|---|---|---|
Handle options include:
| Compact, Fast-Acting Configurations Available Fold-Out Manual Override Available | Styles Include:
|
| View Electric Actuated Ball Valves | View Pneumatic Actuated Ball Valves |
Get a Quote for Your Project
For the most accurate pricing information, we’re happy to provide a quote for your specific application. In most cases, we will respond within 1 business hour!
Applications for 3-Way Ball Valves
Three-way ball valves can be used as diverters or input selectors. Our 3-way ball valves are designed for use in the following applications:
- Process Control Applications
- Sterilizers & Autoclaves
- Bottling & Dispensing
Features of Our 3-Way Ball Valves
Made in the USA
Factory-Direct Support
100% Tested In House
Long-Lasting
Maintenance-Free
Reliable Sealing
Competitively Priced
No Reseller Markups
Ultra-Compact Design
Application-Specific Customizations Available
Available 3-Way Ball Valves
We use the latest technology and manufacturing processes to ensure that all Gemini Valve 3-way ball valves are engineered to precise specifications.
Valve body materials include carbon steel and stainless steel, and feature a self-wear compensating stem seal design for long-lasting, leak-tight service.
Why Choose Gemini Valve?
All Production & Distribution Under One Roof
Our 3-way ball valves are designed, manufactured, tested, distributed and supported directly from our facility in New Hampshire.
With all processes under one roof, our customers experience rapid support, direct contact with our engineers and fully customized design options.
- 50+ Years of Engineering Expertise
- USA-Based Facility in Rural New Hampshire
- Family Owned & Operated
- 100% In-House Design, Manufacturing, Testing, Distribution & Support
Searching for a Custom 3-Way Ball Valve?
That just so happens to be our specialty. Our engineering team is ready to design and manufacture a new, unique 3-way ball valve solution for your exact specifications.
All custom ball valves are backed by our expert engineers and their decades of experience. It all happens in our 60,000 sq.ft. facility, which is equipped with the latest technology to ensure that all customizations are executed carefully and precisely.
