Electric Actuator (24VDC) with a cycle (index) time of approximately two seconds. Actuator is power on / off utilizing cam switches to start and stop the motor at close / open positions. Cam switches can be used for position feedback. Actuator controlled by user provided DPDT (Double Pole, Double Throw) switch or device to reverse polarity. Temperature Rating 40°F to 221°F (4.4°C to 105°C). Duty Cycle 25%, Amps; Start 2.4, Running 1.2. Electrical connection: 24" leads. Other electric connections available - consult factory. Permanently lubricated – maintenance free gear train. Base Die Cast Aluminum with Zinc / Black Chromate Coating, Cover Zytel, 300 Series Stainless Output Shaft & Mounting hardware, General Purpose Enclosure (non NEMA rated). Also see Product Specifications which can be found at www.geminivalve.com Products are marketed per Gemini Valve Standard Terms & Conditions. All Gemini Valve Products MADE IN USA.

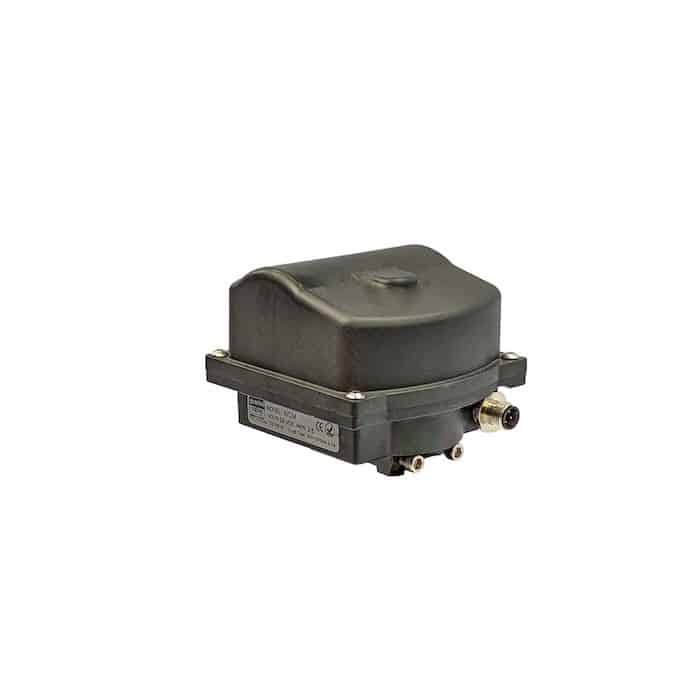

24VDC Electric Actuator with a cycle (index) time of approximately 2.5 seconds. Actuator is power on / off utilizing cam switches to start and stop the motor at close / open positions. Cam switches can be used for position feedback. Actuator controlled by user provided DPDT (Double Pole, Double Throw) switch or device to reverse polarity. Temperature Rating 40°F to 221°F (4.4°C to 105°C). Duty Cycle 25%, Amps; Start 2.4, Running 1.2. Electrical connection: M12 Male 4 Pin Connector. Other electric connections available - consult factory. Permanently lubricated – maintenance free gear train. Base Die Cast Aluminum with Zinc / Black Chromate Coating, Cover Zytel, 300 Series Stainless Output Shaft & Mounting hardware, NEMA 4X Enclosure.
- Actuator Enclosure RatingNEMA 4X
- Spare Parts DescriptionElectric Actuator
