Pneumatic Actuator Limit Switch

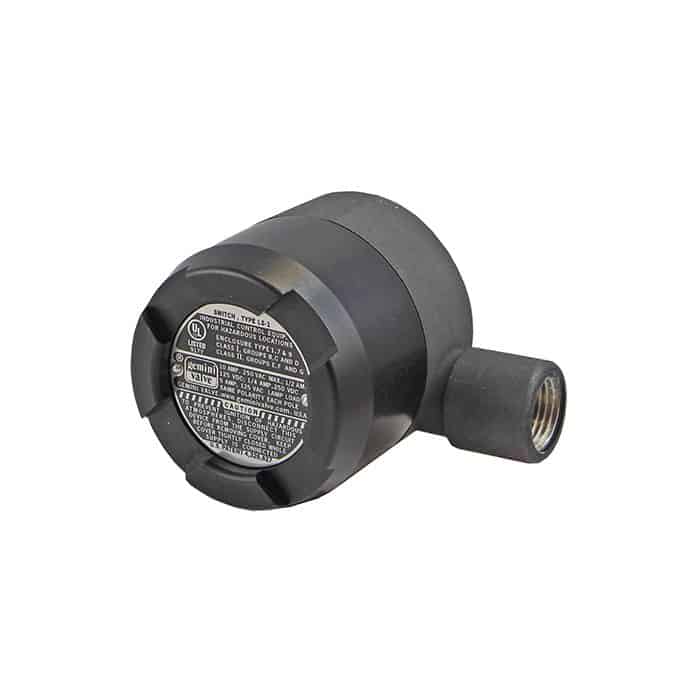

Limit Switch which provides means to display valve position remotely or to interconnect the valve with associated equipment such as pumps or other valves. The Limit Switch utilizes two mechanical S.P.D.T. (Single-Pole, Double-Throw) micro switches which respond to actuators’ fully open or fully closed position by mean of a cam fitted to the actuator top shaft. The Limit Switch is totally enclosed and may be used in applications where a dust tight or weathertight enclosure is required as well as in those locations where general purpose enclosures will serve. The housing, like our pneumatic actuators, is 6061-T6 aluminum with Teflon impregnated hard-anodized surfaces. Rated at 10 amp. 250VAC maximum; 1/2 amp. 125VDC; 1/4 amp. 250VDC; 5 amp. 125VAC lamp load. (Each pole must be the same polarity to utilize these ratings). Internal Terminal Strip with Screw-Clamp Connectors. Each of the S.P.D.T. Switches is Readily Adjustable. Designed to Meet the requirements of NEMA 1 (General Purpose); NEMA 4 (Watertight & Dust tight); NEMA 7 (Hazardous Locations, Class I Groups B, C, & D); NEMA 9 (Hazardous Locations, Class II, Groups E, F, & G); NEMA 12 (Oil tight and Drip tight); and NEMA 13 (Oil tight and Dust tight). UL® Listed as Industrial Control Equipment for use in Hazardous Locations, Class I, Groups B, C, & D and Class II, Groups E, F, & G. Also see Product Specifications which can be found at www.geminivalve.com Products are marketed per Gemini Valve Standard Terms & Conditions. All Gemini Valve Products MADE IN USA. Suitable for General Industrial Series, Serviceable Series and Compression End Series. Also see Product Specifications which can be found at www.geminivalve.com Products are marketed per Gemini Valve Standard Terms & Conditions. All Gemini Valve Products MADE IN USA.

Pneumatic Actuator is equipped with Limit Switch which provides means to display valve position remotely or to interconnect the valve with associated equipment such as pumps or other valves. The Limit Switch utilizes two mechanical S.P.D.T. (Single-Pole, Double-Throw) micro switches which respond to actuators’ fully open or fully closed position by mean of a cam fitted to the actuator top shaft. The Limit Switch is totally enclosed and may be used in applications where a dust tight or weathertight enclosure is required as well as in those locations where general purpose enclosures will serve. The housing. like our pneumatic actuators, is 6061-T6 aluminum with Teflon impregnated hard-anodized surfaces. Rated at 10 amp. 250VAC maximum; 1/2 amp. 125VDC; 1/4 amp. 250VDC; 5 amp. 125VAC lamp load. (Each pole must be the same polarity to utilize these ratings). Internal Terminal Strip with Screw-Clamp Connectors. Each of the S.P.D.T. Switches is Readily Adjustable. Designed to Meet the requirements of NEMA 1 (General Purpose); NEMA 4 (Watertight & Dust tight); NEMA 7 (Hazardous Locations, Class I Groups B, C, & D); NEMA 9 (Hazardous Locations, Class II, Groups E, F, & G); NEMA 12 (Oil tight and Drip tight); and NEMA 13 (Oil tight and Dust tight). UL® Listed as Industrial Control Equipment for use in Hazardous Locations, Class I, Groups B, C, & D and Class II, Groups E, F, & G.
