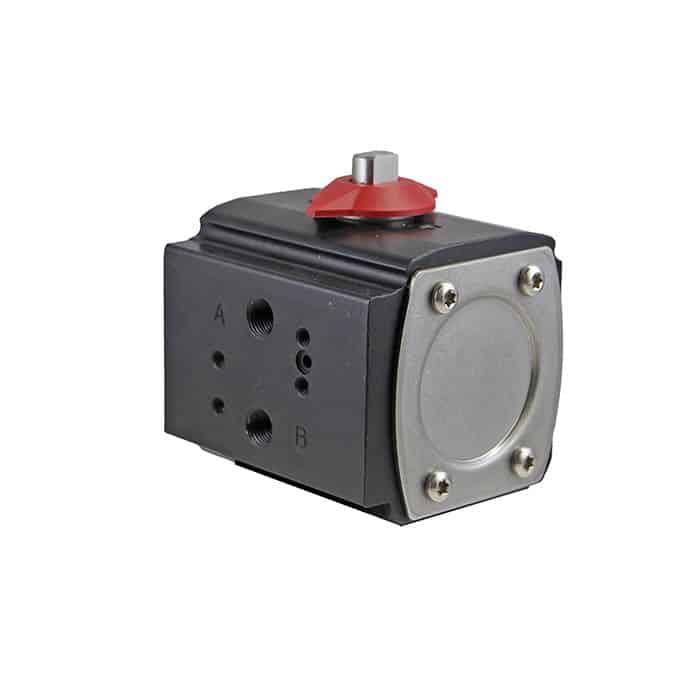

Pneumatic Actuator

Model Number

A522D

SKU
A522D
$316.05
Add to Cart
Request a Sample
Request a Sample
Product: Pneumatic Actuator
Model Number: A522D
11. Tell us about yourself
22. Request a sample
Save for Later
Request CAD File
Product: Pneumatic Actuator
Model Number: A522D
11. Tell us about yourself
22. Request CAD File
Configured Product Information
Specifications
Dimensions
Configured Product Information

Double-Acting (Air to Open / Air to Close) Pneumatic Actuator which operates on 60-125 psi air supply with an cycle (index) time of 1/2 to 1 second depending on model and load. Temperature Rating -20°F to 350°F (-28.8°C to (176.6°C). Air connection is NAMUR / (2) 1/8” NPT female ports to enable direct NAMUR or remote solenoid valve piloting. Actuator body aluminum with Teflon® impregnated hard anodized surfaces. Hardware 300 Series Stainless Steel. Permanently lubricated – maintenance free. Visual Open / Close indicator. Suitable for 0.36 to 0.80 port General Industrial, Serviceable and Compression End Series Ball Valves Also see Product Specifications which can be found at www.geminivalve.com Products are marketed per Gemini Valve Standard Terms & Conditions. All Gemini Valve Products MADE IN USA.

Specifications
  • Valve OperatorActuator
  • Valve Operator TypeDouble-Acting 60-125 PSI
  • Spare Parts DescriptionPneumatic Actuator
Dimensions
