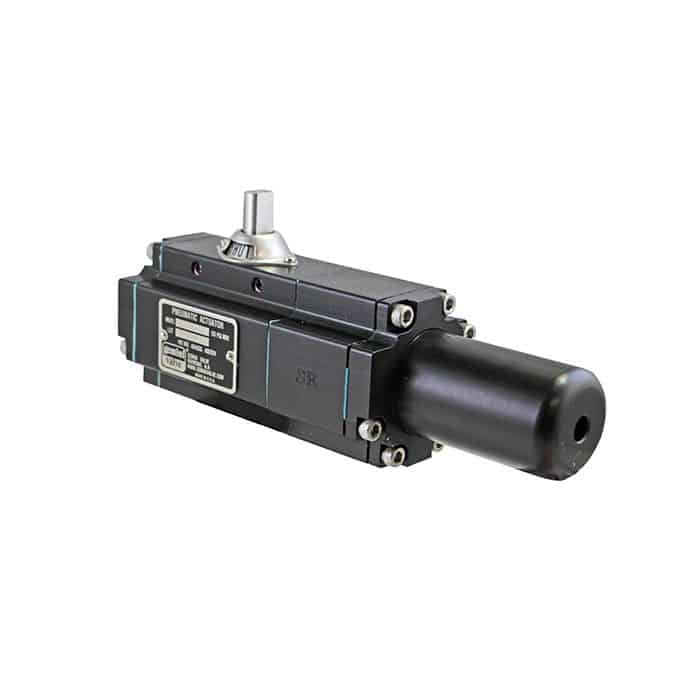

Spring-Return (Normally Open) Pneumatic Actuator

Model Number

A422NOSR

SKU
A422NOSR
$749.25
Add to Cart
Request a Sample
Request a Sample
Product: Spring-Return (Normally Open) Pneumatic Actuator
Model Number: A422NOSR
11. Tell us about yourself
22. Request a sample
Save for Later
Request CAD File
Product: Spring-Return (Normally Open) Pneumatic Actuator
Model Number: A422NOSR
11. Tell us about yourself
22. Request CAD File
Configured Product Information
Specifications
Dimensions
Configured Product Information

400 Series Spring-Return (Air to Close/ Spring to Open) Pneumatic Actuator which operates on 75-125 psi air supply with an cycle (index) time of 1/2 to 1 second depending on model and load. Temperature Rating -20°F to 350°F. Air connections are (2) 1/8” NPT female ports. Actuator body aluminum with Teflon® impregnated hard anodized surfaces. Hardware 300 Series Stainless Steel. Permanently lubricated – maintenance free. Visual Open / Close indicator. Suitable for 0.8 to 1.5 port 76, 86 & 96 Series Ball Valves. Also see Product Specifications which can be found at www.geminivalve.com Products are marketed per Gemini Valve Standard Terms & Conditions. All Gemini Valve Products MADE IN USA.

400 Series Spring-Return (Air to Close/ Spring to Open) Pneumatic Actuator which operates on 75-125 psi air supply with an cycle (index) time of 1/2 to 1 second depending on model and load. Temperature Rating -20°F to 350°F. Air connections are (2) 1/8” NPT female ports. Actuator body aluminum with Teflon® impregnated hard anodized surfaces. Hardware 300 Series Stainless Steel. Permanently lubricated – maintenance free. Visual Open / Close indicator. Suitable for 0.8 to 1.5 port 76, 86 & 96 Series Ball Valves.

Specifications
  • Valve OperatorActuator
  • Valve Operator TypeSpring-Return Normally Open 75-125 PSI
  • Actuator EnclosureAluminum with Teflon® Impregnated Hard Anodized Surfaces / Trim 300 Series Stainless
  • Actuator Temperature Range-20°F to 350®F (-28.8°C to 176.6°C)
  • Actuator Duty Cycle100%
  • Actuator Cycle Time1/2 to 1 second / model - load dependent
  • Actuator Supply Connection(2) 1/8" NPT female
  • Spare Parts DescriptionPneumatic Actuator

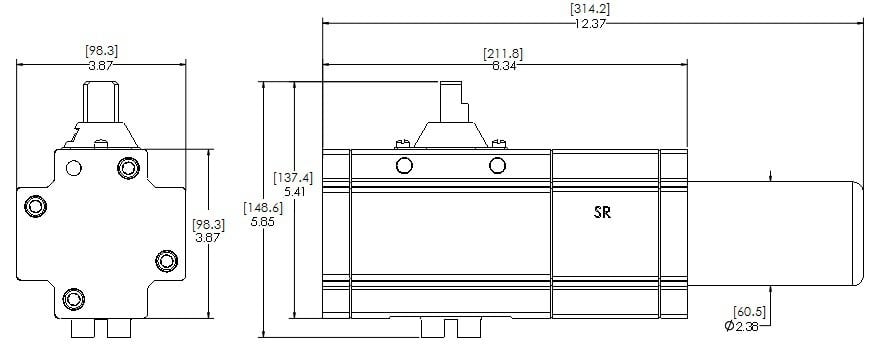

Dimensions
