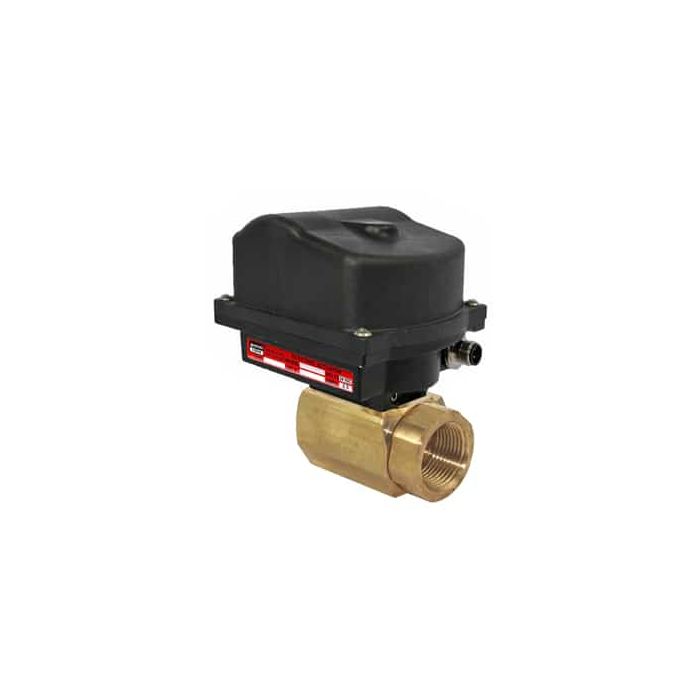

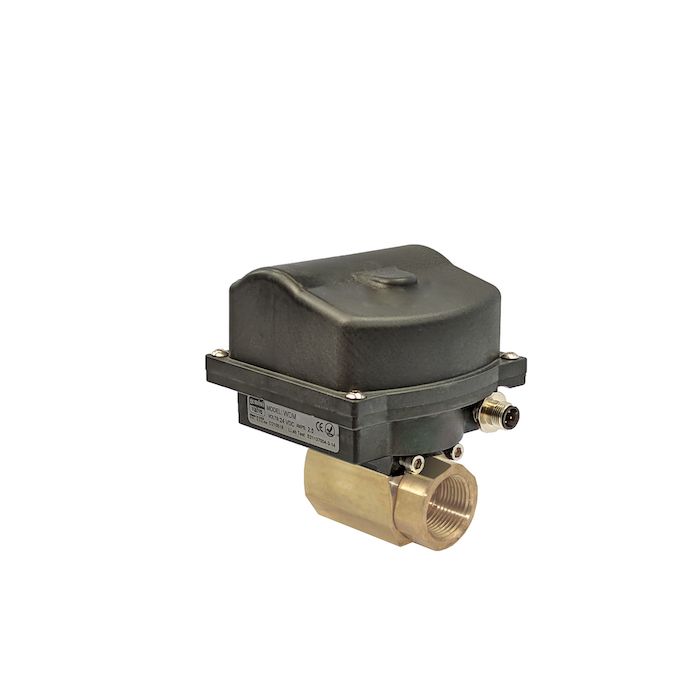

1/4" NPT Brass 24 DC, Capacitor-Failsafe Electric Actuated Ball Valve

Performance Automation Series; brass body with 316 stainless steel ball and stem ball valve. Seats are glass reinforced P.T.F.E. (Teflon®), Stem Seal Viton® . Pipe connections are NPT (National Pipe Taper) female screwed end. Temperature Range -20°F to 350°F (-28.8°C to 176.6°C). Valve Body Pressure Rating 1,000 psi C.W.P. (Cold Working Pressure) Maximum Pressure Differential 400 psi C.W.P. – also see Differential Pressure Temperature Chart). WARNING: Attention California Product Users: Brass raw material used to produce this valve contains a small percentage of lead. Cancer or Reproductive Harm. See California Proposition 65 for details at www.P65Warnings.ca.gov Also see Product Specifications which can be found at www.geminivalve.com Products are marketed per Gemini Valve Standard Terms & Conditions. All Gemini Valve Products MADE IN USA.

Valve is operated by a 24VDC electric actuator with a cycle (index) time of approximately 3.5 seconds. The actuator is power-to-open, fail-close: an electronic capacitor backup automatically drives the valve closed on loss of power, with no springs to maintain. Note: upon power-up or restoration of power, the failsafe capacitor requires a minimum of 4 seconds to charge; the fail-close function is not available until charging is complete. Integral cam switches can be used for valve position feedback. Ambient temperature rating: -25°C to +65°C. Duty cycle: 25%. Current draw: 6A typical, 15A maximum. Electrical connection: M12 male 4-pin connector; an optional M12 female 4-pin x strain relief connector is available, and other electrical connections are available — consult factory. Permanently lubricated, maintenance-free gear train. Construction: die-cast aluminum base with zinc/black chromate coating, glass-filled nylon (PA66) cover, and 300 series stainless steel output shaft and mounting hardware.
