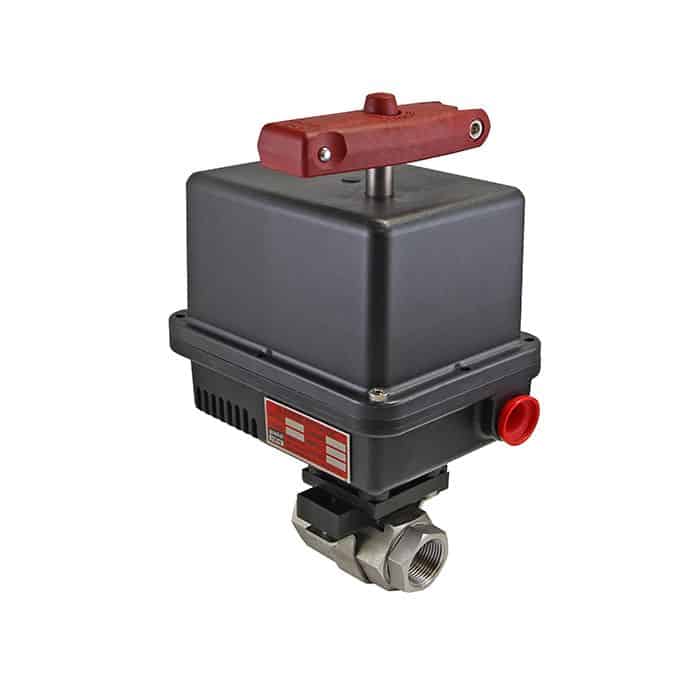

1-1/2" NPT Stainless Steel 120 AC Electric Actuated Ball Valve With Limit Switch

Model Number

1-1/2 86-6-RT-6-630-120AC

SKU
8266N630120A
$766.20
Add to Cart
Request a Sample
Request a Sample
Product: 1-1/2" NPT Stainless Steel 120 AC Electric Actuated Ball Valve With Limit Switch
Model Number: 1-1/2 86-6-RT-6-630-120AC
11. Tell us about yourself
22. Request a sample
Configured Product Information
Specifications
Dimensions
Spare Parts
Configured Product Information

General Industrial Series two piece standard port 316 stainless steel bar stock body, ball and stem. Seats and Stem Seal are glass reinforced P.T.F.E. (Teflon®). Pipe connections are NPT (National Pipe Taper) female screwed end. Temperature Range -50°F to 450°F (-45.5°C to (232.2°C). Valve Body Pressure Rating 720 psi C.W.P. (Cold Working Pressure), Maximum Pressure Differential 400 psi – also see Differential Pressure Temperature Chart), Saturated Steam 150 PSI and a vacuum rating of 20 Microns. Self-compensating stem seal design. Also see Product Specifications which can be found at www.geminivalve.com Products are marketed per Gemini Valve Standard Terms & Conditions. All Gemini Valve Products MADE IN USA.

Valve is operated by 120VAC Electric Actuator with a cycle (index) time of six seconds. Actuator is power on / power off utilizing cam switches to start and stop motor at close / open positions. Actuator controlled by user provided SPDT (Single Pole, Double Throw) switch or device. Temperature Rating 40°F to 150°F (4.4°C to 65.5°C). Duty Cycle 78%, Amps full load 0.5. Electrical connection: (2) Conduit ½” ports. Capacitor run motor with auto reset thermal overload protection. Permanently lubricated – maintenance free gear train. DuPont® FR50 cover with Teflon® coated cast aluminum base. Fold out manual override handle. NEMA 4X Enclosure. UL®A508 Listed.

Specifications
  • Valve TypeTwo-Way, On / Off
  • Valve StyleTwo-Piece Body - Standard Port
  • Valve Connection Size1-1/2" NPT female
  • Valve Port Size1.25
  • Valve Body Material316 Stainless Steel
  • Valve Ball & Stem Material316 Stainless Steel
  • Valve Seal MaterialP.T.F.E. (Glass Filled Reinforced Teflon®)
  • Valve Temperature Range-50°F to 450°F (-45.5°C to 232.2°C)
  • Valve Pressure Rating720 PSI C.W.P. (Cold Working Pressure), Saturated Steam 150 PSI
  • Valve Vacuum Rating20 Micron
  • Valve OperatorActuator
  • Valve Operator Type120AC
  • Actuator EnclosureTeflon® Coated Cast Aluminum Base, DuPont® FR50 Cover
  • Actuator Enclosure RatingNEMA 4X, UL®A508
  • Actuator Temperature Range40°F to 150°F (4.4°C to 65.5°C)
  • Actuator Duty Cycle78%
  • Actuator AMPS0.5
  • Actuator Cycle Time6 seconds
  • Actuator OverrideManual - Fold Out Lever Handle
  • Actuator Supply Connection(2) 1/2" Conduit
  • Limit SwitchL
