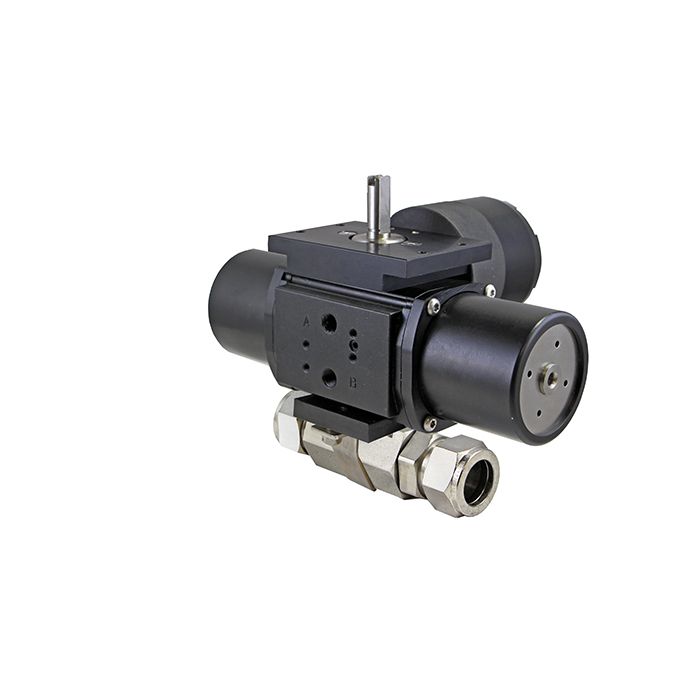

Compression End Series; stainless steel body, ball and stem ball valve. Seats and Stem Seal are glass reinforced P.T.F.E. (Teflon®). Pipe connections are Tube Compression. Temperature Range -50°F to 450°F (-45.5°C to (232.2°C). Valve Body Pressure Rating 1,000 psi C.W.P. (Cold Working Pressure) Maximum Pressure Differential 400 psi – also see Differential Pressure Temperature Chart), Saturated Steam 150 PSI and a vacuum rating of 20 Microns. Self-compensating stem seal design. Also see Product Specifications which can be found at www.geminivalve.com Products are marketed per Gemini Valve Standard Terms & Conditions. All Gemini Valve Products MADE IN USA. Valve is operated by Spring-Return (Air to Open / Spring to Close) Pneumatic Actuator which operates on 60-125 psi air supply with an cycle (index) time of 1/2 to 1 second depending on model and load. Temperature Rating -20°F to 350°F (-28.8°C to 176.6°C). Air connection is NAMUR / (2) 1/8” NPT female ports to enable direct NAMUR or remote solenoid valve piloting. Actuator body aluminum with Teflon® impregnated hard anodized surfaces. Hardware 300 Series Stainless Steel. Permanently lubricated – maintenance free. Visual Open / Close indicator.

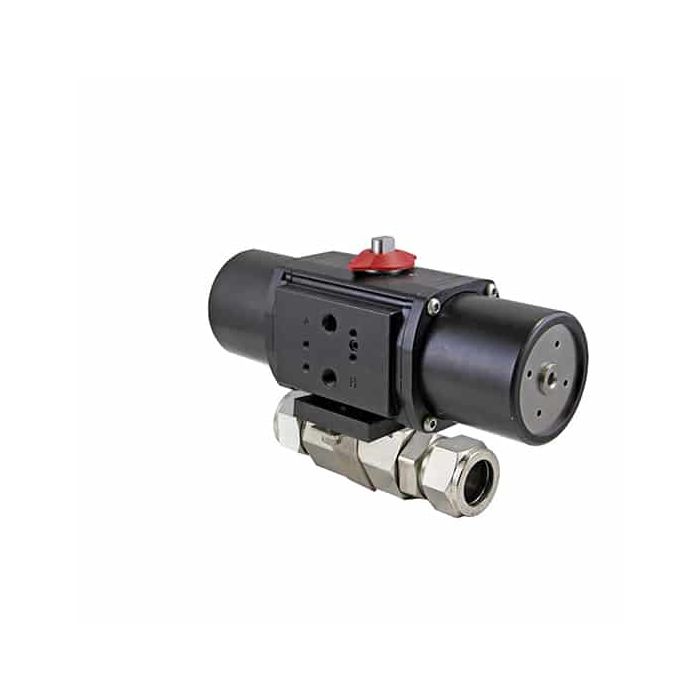

Valve is operated by Spring-Return (Air to Close / Spring to Open) Pneumatic Actuator which operates on 60-125 psi air supply with an cycle (index) time of 1/2 to 1 second depending on model and load. Temperature Rating -20°F to 350°F (-28.8°C to 176.6°C). Air connection is NAMUR / (2) 1/8” NPT female ports to enable direct NAMUR or remote solenoid valve piloting. Actuator body aluminum with Teflon® impregnated hard anodized surfaces. Hardware 300 Series Stainless Steel. Permanently lubricated – maintenance free. Visual Open / Close indicator.
